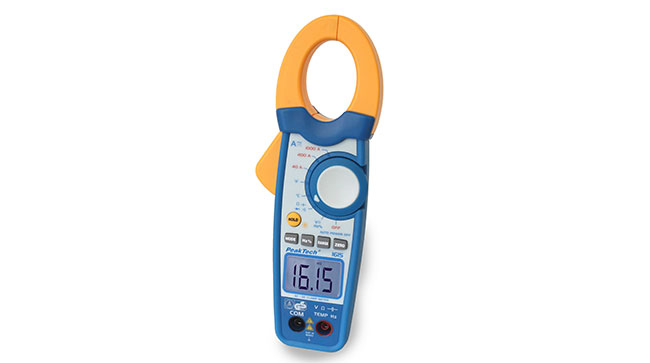

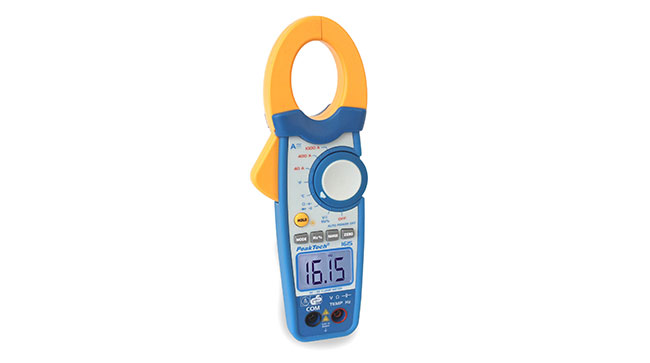

PeakTech® 1615
THB 5,000.00
SKU :
-
Digital Clamp Meter, 3 3/4-digit, 1000 A AC/DC
This professional clamp meter allow contactless current measurements and features a rugged fireproof and ergonomic double mold housing the tear drop shaped jaws can be used easily in industrial and commercial applications or in other tigt places.
- 3 ¾ digit, 17 mm LCD; max. indication: 3999
- Duty cycle
- Auto/manual range selection
- Data hold
- Backlight
- AC/DC current: 1000 A
- AC/DC voltage: 600 V
- Resistance-, frequency-, capacitance- and temperature measurement
- Diode test and continuity test
- Auto power off
- Max. conductor size: 35 mm
- Safety: TÜV/GS, EN 61010-1 CAT III 600 V
- Accessories: type-K-temperature probe, carrying case, test leads, 9V-battery and manual
| DCV | 400 mV/4/40/400/600 V; ± 0,8 % + 3 dgt. – 100 µV |
| ACV | 400 mV/4/40/400/600 V; ± 1,8 % + 5 dgt. – 100 µV |
| DCA | 40/400/1000 A; ± 2,8 % + 5 dgt. – 10 mA |
| ACA | 40/400/1000 A; ± 3,0 % + 5 dgt. – 10 mA |
| Ohm | 400 Ω/4/40/400 kΩ/4/40 MΩ; ± 1,0 % + 4 dgt. – 100 mΩ |
| Kap. | 40/400 nF/4/40/100 µF; ± 3 % + 5 dgt. – 10 pF |
| Freq. | 5/50/500 Hz/5/50/100 kHz; ± 1,2 % + 2 dgt. – 1 mHz |
| Temp. | -20 ... +1000°C; ± 3 % + 5 dgt. – 1°C |
| Dimensions | (WxHxD) 80 x 230 x 50 mm |
| Weight | 300 g |
| EAN-13 | 4250569400315 |
