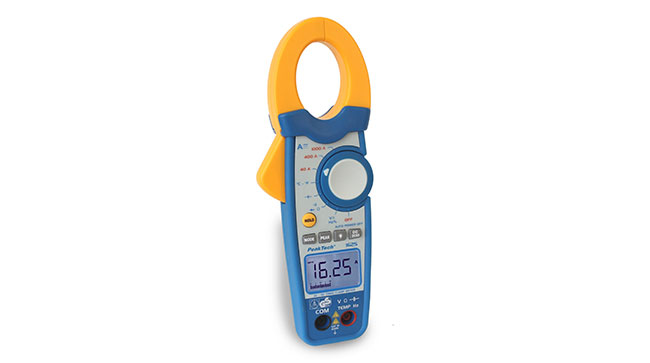

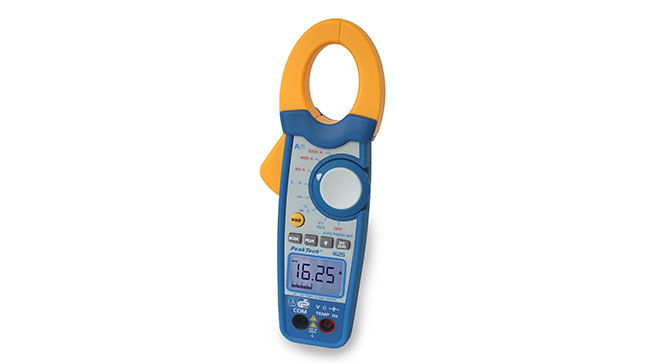

PeakTech® 1625
THB 6,000.00
SKU :
-
Digital Clamp Meter with True RMS + Bargraph,
3 3/4-digit
This professional TrueRMS clamp provided you with a full range of features including current AC/DC up to 1000A, voltage, resistance, frequency and more for basic electric troubleshooting. The P1610 built-in a 3 ¾ digits display (15mm) LCD with backlight up to 3.999 Counts and a 42-segment analogue bargraph. An excellent choice for maintenance field. Rated at CAT III 600V the P1625 offers a diameter of 35mm for cables, Peak-hold function, auto ranging, capacitance, frequency, voltage, resistance, temperature, diode and continuity measurement with a fast response processor to enhance efficiency and safety in today´s complex electrical environments.
The perfect choice for electricians and industrial maintenance technicians thanks to its TrueRMS measures. Easy to use, resistant, safe and reliable.
It comes with a case for safe transportation, test probes, temperature probe Type-K, battery and operation manual
- 3 ¾ digit, 15 mm LCD; max. indication: 3999, 42-segment analogue bargraph
- True RMS
- Auto Ranging
- Min./Max. mode
- Data hold
- Backlight
- AC/DC current: 1000 A
- AC/DC voltage: 600 V
- Resistance-, frequency-, capacitance- and temperature measurement
- Diode test and continuity test
- Auto power off
- Max. conductor size: 35 mm
- Safety: TÜV/GS, EN 61010-1; CAT III 600 V
- Accessories: type-K-temperature probe, carrying case, test leads, 9V-battery and manual
| DCV | 400 mV/4/40/400/600 V; ± 0,8 % + 2 dgt. – 100 µV |
| ACV | 400 mV/4/40/400/600 V; ± 1,5 % + 8 dgt. – 100 µV |
| DCA | 40/400/1000 A; ± 2,8 % + 8 dgt. – 10 mA |
| ACA | 40/400/1000 A; ± 2,8 % + 8 dgt. – 10 mA |
| Ohm | 400 Ω/4/40/400 kΩ/4/40 MΩ; ± 1,0 % + 4 dgt. – 100 mΩ |
| Kap. | 4/40/400 nF/4/40/400 µF/4/40 mF; ± 3 % + 5 dgt. – 1 pF |
| Freq. | 4 kHz; ± 1,5 % + 2 dgt. – 1 Hz |
| Temp. | -40 ... +1000°C; ± 2,5 % + 3 dgt. – 1°C |
| Dimensions | (WxHxD) 80 x 230 x 50 mm |
| Weight | 300 g |
| EAN-13 | 4250569400322 |
