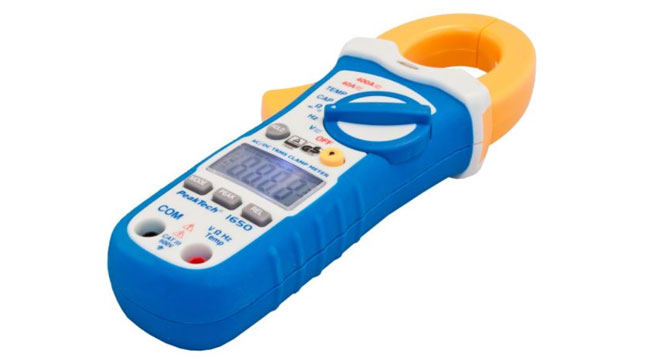

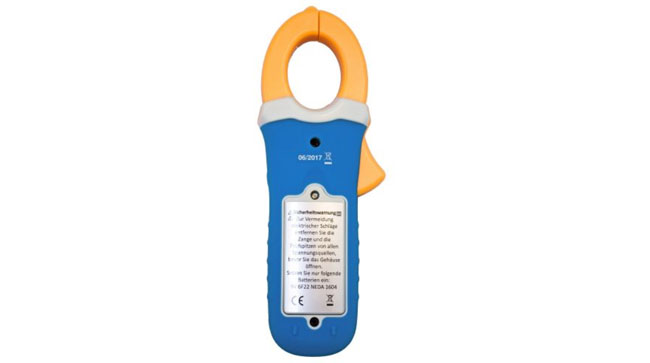

PeakTech® 1650
THB 3,500.00
SKU :
-
Digital-Clamp Meter, 3 3/4 digit, 400 A AC/DC
This Clamp meter enable contactless current measurements and features a rugged, fireproof casing. A hand guard is against accidental contact with the jaw and/or the lead inside, thus ensuring a maximum of safety for the user.
- 3 3/4 digit, 12 mm LCD; max. indication: 3999, 41-segment analogue bargraph
- True RMS
- Auto ranging
- PEAK mode
- Data hold
- Backlight
- Non-contact voltage detector
- AC/DC current: 400 A / AC/DC voltage: 600 V
- Resistance-, frequency-, capacitance- and temperature measurement
- Diode test and continuity test
- Auto power off
- Max. conductor size: 30 mm
- Safety: TÜV / GS; EN 61010-1; CAT III 600 V

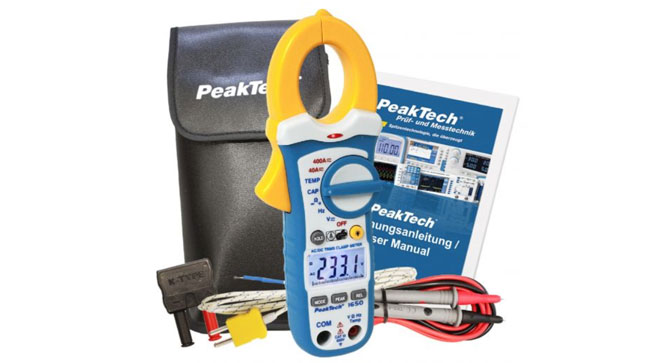

- Accessories: type K-temperature probe, carrying case, test leads, battery and manual
| DCV | 400 mV/4/40/400/600 V; ± 1,5 % + 2 St. |
| ACV | 400 mV/4/40/400/600 V; ± 1,0 % + 10 St. |
| DCA | 40/400 A; ± 2,5 % + 5 St. |
| ACA | 40/400 A; ± 2,5 % + 8 St. |
| Ohm | 400 Ω/4/40/400 kΩ/4/40 MΩ; ± 1,5 % + 2 St. |
| Cap. | 40 nF - 4 mF; ±3,0 % + 5 St. |
| Freq. | 10 Hz - 100 kHz; ± 1,5 % + 2 St. |
| Temp. | -20 ... +760°C; ± 3,0 % + 5 St. |
| Dimension (WxHxT) | 70 x 197 x 40 mm |
| Weight | 190 g |
| EAN-13 | 4250569400377 |
