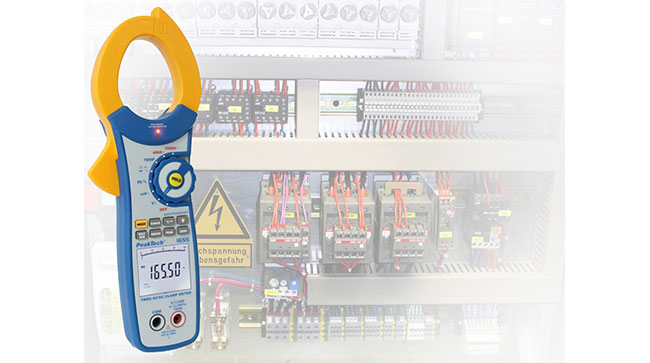

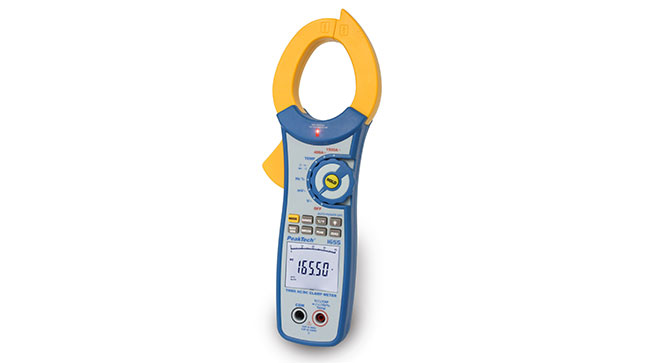

PeakTech® 1655

Digital Clamp Meter with True RMS, 4 3/4-digit, 1500 A AC/DC

This professional digital clamp meter for measurements up to 1500 A AC/DC provides a rugged, rubberized and ergonomically shaped case that ensures a safe handling during the measurement and also suitable for use in industrial applications. The integrated voltage detector enables the detection of live wires and the clamp meter includes inrush current measuring function for measuring the maximum currents, i.e. of electrical motors

4 3/4-digit LCD-display (max. 40000) with backlight and 42-segment bargraph
True RMS
MIN/MAX, DATA-Hold
Zero adjustment with ZERO-function
Relative measurement
Diode - and continuity test
Auto power off and low battery indication
Current measurements up to 1500 A AC/DC
Conductor size: 55 mm
Non contact voltage detector
Safety: EN-61010-1, CAT III 1000 V CAT IV 600V
Accessories: carrying case, test leads, type-K-thermocouple, battery and operation manual

Download Manual

PeakTech_1655_5s

DCV	400 mV/4/40/400/1000 V - 0,01 mV; +/- 0,1 % + 5 dgt
ACV / Freq.-range	400 mV/4/40/400/750 V - 0,1 mV; +/- 1,0 % + 30 dgt / 50 ... 40 Hz
DCA	400/1500 A - 0,01 A; +/- 2,0 % + 10 dgt
ACA / Freq.-range	400/1500 A - 0,01 A; +/- 2,8 % + 10 dgt / 50 … 60 Hz
Ohm	400 Ω/4/40/400 kΩ/4/40 MΩ - 0,01 Ω; +/- 1,0 % + 4 dgt
Capacitance	40/400 nF/4/40/400 µF/4/40 mF - 0,01 nF; +/- 3,5 % + 10 dgt
Frequency	40 Hz - 40 MHz - 1 mHz; +/- 0,3 % + 2 dgt
Temperature	-40 … +1000 °C - 0,1 °C; +/- 1,0 % + 2,5°C
Operation voltage	9V-battery
Dimensions (WxHxD)	100 x 295 x 45 mm
Weight	540 g
EAN-13	4250569402098
