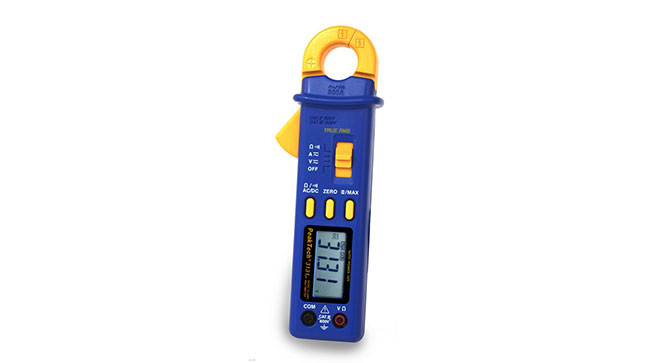

PeakTech® 3131 eff
THB 7,500.00
SKU :
-
Digital Clamp Meter with True RMS, 3 3/4-digit, 300 A AC/DC
This clamp meter can measure currents without contact, while additional measurement functions for DC and AC- voltage plus resistance with continuity test are possible. The measured TrueRMS value is displayed on the 3 3/4-digits LCD display with. Furthermore, this unit features a sturdy, unbreakable and fireproof casing. A hand guard against accidental contact with the jaw and the lead inside provides a maximum of safety for the user.
- 3 ¾ digit, 13 mm LCD Display, max. indication: 3999
- 10 mA resolution
- ACA/DCA Measurements up to 300 A
- True rms measurements
- Continuity beeper
- Data hold and max. hold function
- Auto ranging
- Auto power off selectable
- Max. conductor size: 22 mm
- Safety: EN 61010-1; CAT II 600 V
- Accessories: Carrying case, test lead, battery and manual
| DCV | 400 mV/4/40/400/600 V; ± 0,5% + 2 dgt. - 0,1 mV |
| Overload protection | 600 Vrms |
| ACV | 400 mV/4/40/400/600 V; ± 1,5% + 5 dgt. - 0,1 mV |
| Overload protection | 600 Vrms |
| DCA | 40/300 A; ± 1% + 2 dgt. - 10 mA |
| Overload protection | 400 Arms |
| ACA | 40/300 A; ± 1% + 3 dgt. - 10 mA |
| Overload protection | 400 Arms |
| Ohm | 400 Ω/4/40/400 kΩ/4/40 MΩ; ±0,9% + 2 dgt. - 0,1 Ω |
| Overload protection | 600 Vrms |
| Operation voltage | 2 x 1,5 V (AAA) batteries |
| Dimensions (WxHxD) | 66 x 192 x 27 mm |
| Weight | 205 g |
| EAN-13 | 4250569400650 |
