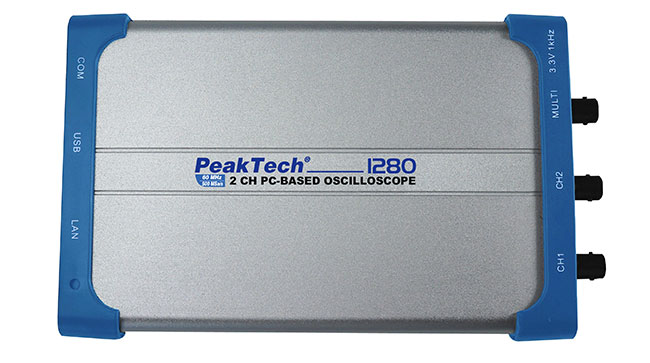

PeakTech® 1280
THB 15,000.00
60 MHz / 2 CH ~ 500 MS/s ~ PC based
Oscilloscope with USB & LAN
This newly developed 2-channel PC-based oscilloscope is perfectly for mobile use with a laptop, the permanent installation in control cabinets, industrial facilities and many other applications where a small, lightweight and powerful oscilloscope is required. The input signals can be directly transferred to the PC via USB or LAN network. By the powerful software and the many functions provided, multifarious applications in service, science and industrial areas are possible.

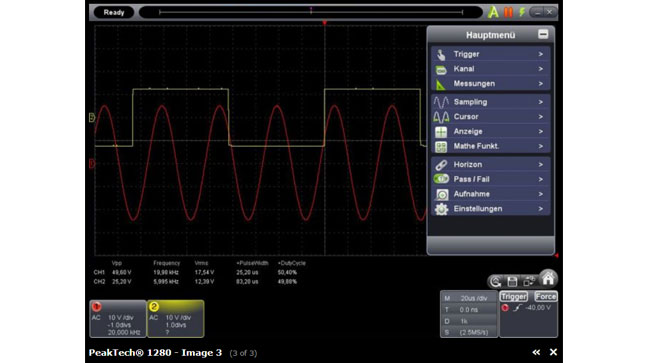

- Powerful PC software for data acquisition and control
- Software available in black or white color scheme (download section)
- 20 automatic measurement modes
- Mathematical functions ( +, -, *, / ) and FFT
- LAN port for remote access via network
- USB connection for real-time data transmission
- Accessories: 2 pcs. probes (1:1, 10:1), USB cable, 2 pcs. BNC-cables, AC-DC Adapter,
- Manual, Software CD for Windows XP/VISTA/7/8
| OSCILLOSCOPE : | |
|---|---|
| Bandwidth | 60 MHz |
| ACQUISITION : | |
| Measurement mode | Normal, Peak-detect, Averaging |
| Sampling rate each channel | 250 MSa/s |
| INPUT : | |
| Input coupling | AC, DC, GND |
| Input voltage | 40 V (DC + AC PK-PK) |
| VERTICAL SYSTEM : | |
| Vertical sensivity | 2 mV – 5 V/Skt./DIV |
| Rise time | < 5.8 ns |
| DC Accuracy | +/- 3% |
| HORIZONTAL SYSTEM : | |
| Horizontal scale | 5 ns/Skt./DIV – 100 s/Skt./DIV |
| TRIGGER : | |
| Trigger type | Alternate / Edge / Video / Pulse / Slope |
| Trigger mode | Single, Normal, Auto |
| SPECIFICATIONS : | |
| Record length | 10.000.000 Points |
| Operation voltage | 5 V DC, 1 A , < 4 W |
| Dimensions (WxHxD) | 190 x 120 x 18 mm |
| Weight | 260 g |
| EAN-13 | 4250569402395 |
