PeakTech® 1325
THB 21,000.00

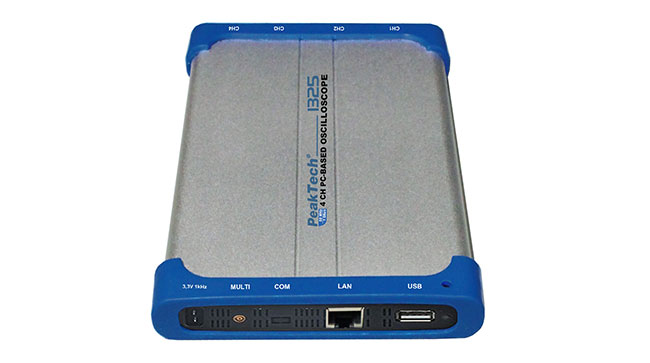

60 MHz/4-CH, 500 MSa/s PC based oscilloscope with USB, LAN
This newly developed 4- channel PC Oscilloscope is perfect suitable for mobile use on a laptop, and permanent installation in control cabinets, industrial equipment and many other applications where a small, lightweight and powerful oscilloscope is required.

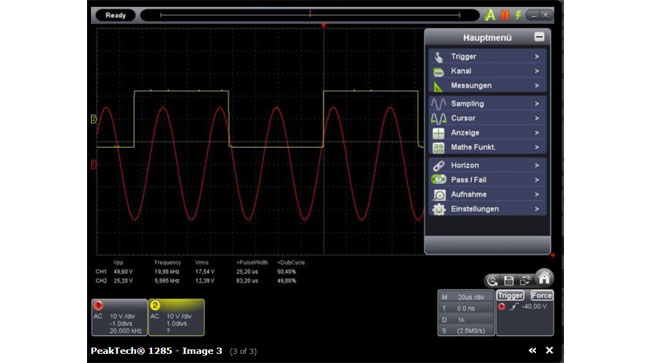

The user can acquire the measurement data over the several data-interfaces directly on the PC with the included PC software.
The oscilloscope has an insulated LAN network interface through which the data can be transmitted remotely in local area networks. This allows the devices e.g. to be installed in electrical systems and the data acquisition can be done comfortable from the workplace.
By the interface isolation maximum safety for the user and the used computer system can be ensured.
The powerful software and the countless number of features make these devices universally suitable for service, scientific and industrial applications.
- Powerful PC software for data acquisition and control
- 20 automatic measurement modes
- Mathematical functions (+, -, *, /) and FFT
- LAN connection for remote access via network
- USB port for real-time data transmission
- Accessories: 4 probes (1:1, 10:1), USB cable, 4 pcs BNC cable, AC-DC adapter, instruction manual, software CD for Windows XP/VISTA/7/8
| OSCILLOSCOPE : | |
|---|---|
| Bandwidth | 60 MHz |
| Sample rate per channel | 500 MSa/s |
| CH | 4 CH |
| INPUT : | |
| Input coupling | AC, DC, GND |
| Input impedance | 1 MΩ ± 2 % / 10 pF ± 5 pF |
| Input voltage | 40 V (DC+AC PK-PK) USB; 400 V (DC+AC PK-PK) LAN |
| Multi input | Sync. in/out, Pass/Fail, Ext. Trigger |
| VERTICAL SYSTEM : | |
| Vertical sensivity | 2 mV – 5 V/Skt./DIV |
| DC Accuracy | +/- 3 % |
| Rise time | < 5.8 ns |
| HORIZONTAL SYSTEM : | |
| Time base range | 5 ns/Skt./DIV - 100 s/Skt./DIV |
| Sampling range | 0.5 S/s - 1 GSa/s |
| Accuracy | 100 ppm x reading + 0.6 ns |
| TRIGGER : | |
| Trigger type | Alternate / Edge / Video / Pulse / Slope |
| Trigger mode (Edge) | Single, Normal, Auto |
| Trigger Acquisation | Sample, Peak detect, Average |
| MESSMODI : | |
| Autom. Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A_>B, Delay A- > B, + Width, - Width, + Duty, - Duty |
| Math. Function | +, -, x, /, invert, FFT |
| XY-Mode | Yes |
| SPECIFICATIONS : | |
| USB Interface | USB 2.0 |
| LAN Interface | RJ-45 |
| LAN Insulated | Yes |
| Storage length | 5.000.000 Points |
| SPECIFICATIONS : | |
| Operation voltage | 5 V DC USB or 5 V DC 1 A, AC-Adapter ; < 5 W |
| Dimensions (WxHxD) | 190 x 120 x 18 mm |
| Weight | 260 g |
| EAN-13 | 4250569403132 |
