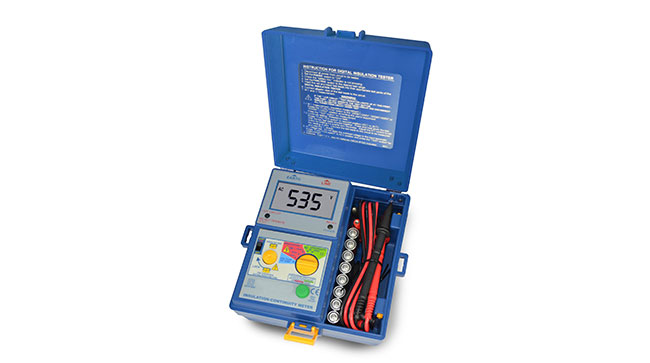

PeakTech® 2670
THB 10,000.00
Insulation tester; 250/500/1000 V; 2000 MΩ
This insulation tester with three test voltages of 250 V, 500 V and 1000 V is suitable for insulation testing according to the VDE-0413. The suitability for measurements in CAT III systems and the warning when voltage carrying networks are detected, as well as the stable case with shoulder strap ensures a safe operation.
- Large 3 ½ digit LCD Display (max. 2000)
- Three insulation DC test voltages 250/500 and 1000 V
- Test insulation at rated voltage into a 1 mA load.
- 200 mA short circuit continuity current.
- External voltage warning indication.
- Fuse protection
- Safety: EN 61010-1; CAT III
- Accessories: Test leads, alligator clips, carrying belt, batteries and manual
| Insulation range/test voltage | 200 MΩ/250V; 200 MΩ/500 V; 2000 MΩ/1000 V; ± 1,5 % + 5 dgt. 100 kΩ |
| Short circuit current | 1 mA DC |
| ACV | 600 V; 1,5 %+ 3 dgt. - 1 V |
| Ohm | 20/2 kΩ; ± 1,5 % + 3 dgt. - 10 mΩ |
| Operation voltage | 8 x 1,5 V (UM3, AA) |
| Dimensions (WxHxD) | 165 x 170 x 92 mm |
| Weight | 1040 g |
| EAN-13 | 4250569400490 |
