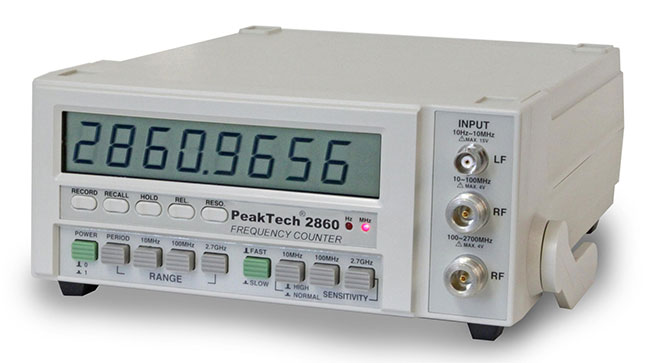

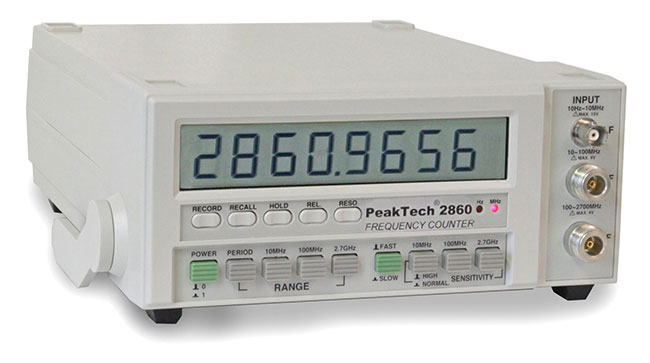

PeakTech® 2860
THB 14,000.00
Universal-Frequency Counter 2,7 GHz
Universal frequency counter with 8 digit 18 mm LCD-display, TCXO crystal timebase, high accurate stability and accuracy. Especially the ecxellent sensitivity for VHF and UHF measurements are main features.
It is designed for measuring the frequency of electrical signals like line-, low- and high frequency of oscillators and radio transmitters. Combined with sensors also the frequencies of mechanical vibrations, speeds, durations or other physical processes can be measured.
- Data-Hold
- Relative measurements
- Period measurements
- Memory (max., min., average)
- Safety: EN 61010-1; CAT II
- Accessories: RF-cable, BNC-cable, test leads, batteries and operation manual
| Ranges | 10 Hz - 10 MHz, 10 MHz - 500 MHz, 100 MHz - 2700 MHz |
| Sensitivity | 10 MHz: = 30 mVrms / 500 MHz: = 50 mVrms / 2,7 GHz: 50 mVrms |
| Period range | 10 Hz - 10 MHz |
| Sensitivity | 10 Hz to 9 MHz = 15 mVrms |
| Time base | 16.777216 MHz |
| Time base temperature-coeffizient | ± 1,5 PPM (10° C - 30° C) |
| Frequency accuracy | ± (2 PPM + 1 dgt.); 23 ± 5° C |
| Max. input voltage | 10 MHz + Period: = 15 Vrms; 500 MHz / 2,7 GHz = 4 Vrms |
| Operation voltage | 6 x 1,5 V Batteries or AC-Adaptor (9 V DC, 300 - 500 mA) |
| Dimensions (WxHxD) | 280 x 210 x 90 mm |
| Weight | 1,2 kg |
| EAN-13 | 4250569400636 |
