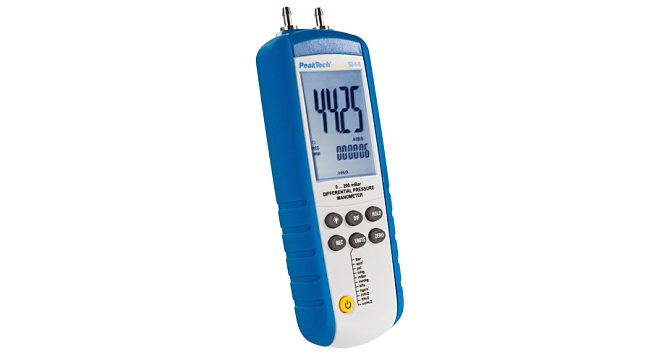

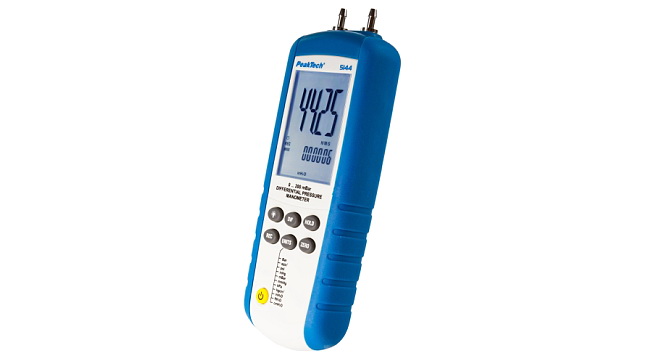

PeakTech® 5144

Differential Pressure Meter 0 ... 200 mBar with USB

The PeakTech 5144 is a measuring device that is used to determine pressure differences. It has a digital multifunction display with backlight. This high-precision measuring device enables use in installation, diagnosis, repair, maintenance and optimization of air conditioning technology, heating and ventilation systems. The USB interface and the supplied software are used to log the measured values over longer periods.

For measuring static and pressure differences
Measuring range of a maximum of 200 mbar
Pressure measurement in 11 selectable units of measurement such as: bar, mbar, psi kg / cm2, kpa and much more.
Auto power-off function
Data Hold function
MIN, MAX, AVG recording function
Integrated magnetic holder for hands-free operation
USB interface and PC software

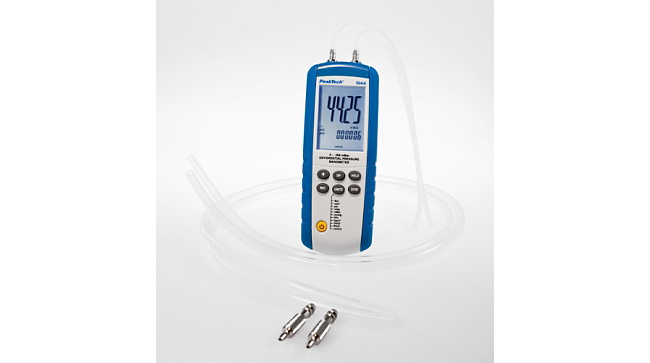

Accessories: case, USB interface cable, 4mm and 8mm connection hoses, hose adapter, software for Windows, batteries and operating instructions
Available: spring / summer 2020

Download Manual

PeakTech_5144_04-2020

mbar	0.00 ~ 200.0 mbar; 0.01 mbar
bar	0.000 ~ 0.200 bar; 0.001 bar
in H2O	0.00 ~ 80.29 in H2O; 0.01 in H2O
kPa	0.00 ~ 20.00 kPa; 0.01 kPA
inHg	0.000 ~ 5.906 inHg; 0.001 inHg
mmHg	0.0 ~ 150.0 mmHg; 0.1 mmHg
oz/in2	0.00 ~ 46.41 oz/in2; 0.01 oz/in2
ftH2O	0.000 ~ 6.691 ftH2O; 0.001 ftH2O
cmH2O	0.0 ~ 203.9 cmH2O; 0,1 cmH2O
kg/cm2	0.000 ~ 0.203 kg/cm2; 0.001 kg/cm2
PSI	0.000 - 2.900 psi; 0.001 psi
Operation voltage	3 x 1,5 V AAA Batteries
Dimensions (WxHxD)	60 x 170 x 30 mm
Weight	220 g
EAN-13	4250569405068
