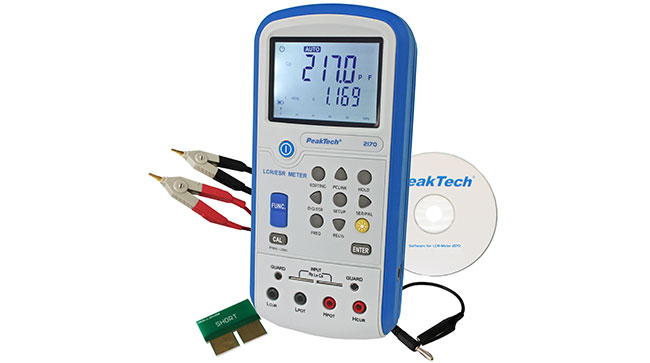

PeakTech® 2170

LCR-ESR-Meter, 100 Hz - 100 kHz, with USB

This newly developed digital LCR meter with ESR (equivalent series resistance) is equipped with many functions and is, by its compact design, ideal both for component testing in the workplace, as well as for service and maintenance. The illuminated multifunction display with bargraph and high measurement frequency of up to 100 kHz allows a highly precise work. With the included PC software it is possible to store and evaluate the measured values.

4 ½ digit multi-function display with bargraph
ESR measurement (equivalent series resistance)
Basic accuracy: 0,3 % at 0,01 % resolution
Auto LCR detection
Pass / fail component sorting function
Relative value measurement, data-hold function
Measuring frequency switchable 100/120 Hz, 1/10/100 kHz
Auto-Power-Off (in battery mode)
Self-calibration function
USB interface and PC software
Accessories: USB interface cable, software for Windows 2000/NT/XP/Vista/7/8/10, kelvin clips, case, battery and manual

Download Manual

PeakTech_2170_02_2016

CAPACITANCE MEASUREMENTS :
Measurement modes	DCR, Ls, Cs, Lp, Cp, D, Q, Rp, θ, ESR
Ranges	200/2000 pF, 20 nF, 20/200 µF, 2/20 mF
RESISTANCE :
Ranges	20/200 Ω, 2/20/200 kΩ, 2/20/200 MΩ
INDUCTANCE :
Ranges	20/200/2000 µH, 20/200 mH, 20/2000 H, 20 kH
ADDITIONAL FUNCTIONS :
DCR	200 Ω ~ 200 MΩ
ESR	0.00 Ω ~ 20.0 MΩ
θ phase angle	-180° ~ +180 °
D/Q	0.001 ~ 1999
Measurement frequencies	100/120 Hz; 1/10/100 kHz
Operation voltage	6 x 1,5 V AAA batteries; optional power adapter 12 V 500 mA
Dimensions (WxHxD)	100 x 210 x 45 mm
Weight	495 g
EAN-13	4250569402159
