PeakTech® 1335
THB 0.00
20 MHz/2 CH, 100 MS/s,
Digital Storage Oscilloscope
2-channel digital storage oscilloscope of the latest generation for the education and professional sector with high-resolution TFT color display and comprehensive additional functions. The impressive price-performance ratio and the modern technology enables a high variety of applications with simple operation for every user from hobby, school and profession.

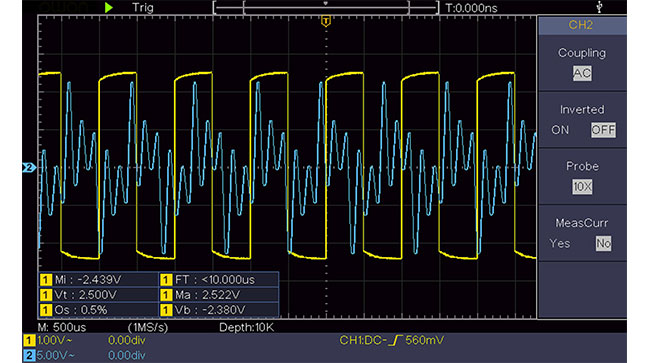

- High-resolution TFT color display with 800 x 480 pixels
- 17.5 cm (7“) TFT color display
- USB port for real time data transmission or reading of internal
- Saving of measured values and graphics directly onto the USB-stick
- Handy and flat case design with carrying handle
- Autoset function for easy operation
- Internal memory of 10 k points per channel or 16 waveforms
- 30 automatic measurement modes and FFT function
- Safety: EN 61010-1; CAT II
- Accessories: USB cable, software CD for Windows, power cable, 2 probes and manual
| Bandwidth | 20 MHz |
| Display | 17,5 cm (7") color-TFT |
| Resolution | 800 x 480 Pixel |
| Channel | 2 CH |
| Sampling rate each channel | 100 MS/s |
| INPUT : | |
|---|---|
| Input coupling | AC, DC, GND |
| Input impedance | 1 MΩ +/- 2 % in parallel with 20 pF +/- 5 pF |
| Input voltage | ≤ 400 V DC or ACpp |
| VERTICAL SYSTEMS : | |
| Vertical sensitivity | 5 mV - 5 V/div. |
| Rise time | ≤ 17.5 ns |
| DC accuracy | +/- 3 % |
| Vertical resolution | 8 Bits (2 CH simultaneously) |
| HORIZONTAL SYSTEMS : | |
| Horizontal scale | 5ns - 1000s/div. |
| Sampling range | 0,5 S/s ~ 100 MS/s |
| TRIGGER : | |
| Trigger type | Edge/Video |
| Trigger mode | Auto, Normal, Single |
| GENERAL : | |
| Record length | 10.000 points/CH |
| Interfaces | USB Device, USB Host |
| Operation voltage | 100 ~ 240 V AC/rms; 50/60 Hz |
| Dimensions (WxHxD) | 300 x 150 x 70 mm |
| Weight | 1,2 kg |
| EAN | 4250569404375 |
