PeakTech® 1355
THB 0.00
60 MHz/ 2 CH, 1 GS/s,
Touchscreen Oscilloscope
2-channel Touchscreen digital storage oscilloscope of the latest generation with high-resolution TFT color display and comprehensive additional functions.
For data transmission of the measured values to the PC or for remote control, various interfaces such as LAN & USB (Host & Device) are available.
This newly developed series offers a wide range of applications with ease of use in electrical engineering, industry, research and development.
- High-resolution TFT color display with 800 x 600 pixels
- 20 cm (8“) TFT color display
- 12-Bit vertical resolution for accurate waveforms
- LAN & USB port for real time data transmission
- Saving of measured values and graphics directly onto the USB-disk
- Use the optional battery (Model: Akku 6) for off-grid operation
- Handy and flat case design with carrying handle
- Autoset function for easy operation
- Record lenght of max. 40 Mio. points
- Automatic measurement modes and FFT function
- Safety: EN 61010-1; CAT II
- Accessories: USB cable, software CD for Windows, power cable, 2 probes and manual
| Bandwidth | 60 MHz |
| Display | 20 cm (8") Touchscreen color-TFT |
| Resolution | 800 x 600 Pixel |
| Channel | 2 CH |
| Vertical resolution | 12 bit |
| SPECIFICATIONS : | |
|---|---|
| Sampling rate (1/2 CH) | 1 GS/s; 500 MS/s |
| Record lenght max. | 40.000.000 points |
| Waveform refresh rate | 75.000 wfms/s |
| Rise Time | ≤ 5.8 ns |
| Vertical sensitivity | 1 mV - 10 V/div. |
| Vertical resolution | 12 Bits |
| Horizontal scale | 2ns - 1000s/div. |
| Trigger type | Edge/Video/Pulse/Slope ... |
| Trigger mode | Auto, Normal, Single |
| GENERAL : | |

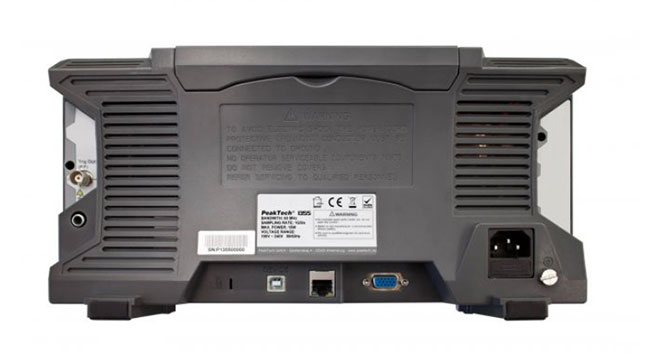

| Interfaces | LAN, USB Device, USB Host |
| Dimensions (WxHxD) | 340 x 175 x 90 mm |
| Weight | ca. 2,6 kg |
| EAN | 4250569404443 |
