PeakTech® 1360
THB 58,000.00
100 MHz / 2 CH, 1 GS/s,
All-in-one Touchscreen Oscilloscope
2-channel Touchscreen digital storage oscilloscope of the latest generation with high-resolution TFT color display and comprehensive additional functions, such as the integrated digital multimeter, VGA-Output & 25 MHz Arbitrary Waveform Generator.
For data transmission of the measured values to the PC or for remote control, various interfaces such as WiFi, LAN & USB (Host & Device) are available.
This newly developed series offers a wide range of applications with ease of use in electrical engineering, industry, research and development.
- High-resolution TFT color display with 800 x 600 pixels
- 20 cm (8“) TFT color display
- 12-Bit vertical resolution for accurate waveforms
- WiFi, LAN & USB port for real time data transmission
- Saving of measured values and graphics directly onto the USB-disk
- Use the optional battery (Model: Akku 6) for off-grid operation

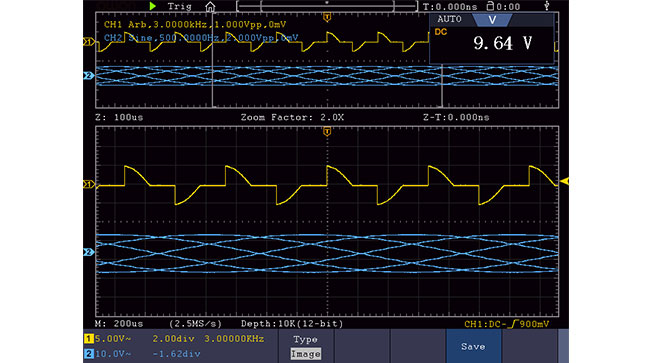

- Integrated 1-Channel 25 MHz Arbitrary Waveform Generator
- Integrated digital multimeter with 4000 counts
- Handy and flat case design with carrying handle
- Autoset function for easy operation
- Record lenght of max. 40 Mio. points
- Automatic measurement modes and FFT function
- Safety: EN 61010-1; CAT II
- Accessories: USB cable, software CD for Windows, power cable, 2 probes and manual
| Bandwidth | 100 MHz |
| Display | 20 cm (8") Touchscreen color-TFT |
| Resolution | 800 x 600 Pixel |
| Channel | 2 CH |
| Vertical Resolution | 12 bit |
| SPECIFICATIONS : | |
|---|---|
| Sample rate (1/2 CH) | 1GS/s; 500 MS/s |
| Record length max. | 40.000.000 points |
| Waveform Refresh Rate | 75,000 wfms/s |
| Rise Time | ≤ 3.5ns |
| Vertical sensitivity | 1 mV - 10 V/div. |
| Horizontal scale | 2 ns - 1000 s/div. |
| Trigger type | Edge/Video/Pulse/Slope |
| Trigger mode | Auto/Normal/Single |
| GENERAL : | |
| Arbitrary Waveform Generator | 1 CH, 25 MHz |
| Multimeter functions | DCV,ACV,DCA,ACA,Ohm,Cap,Diode |

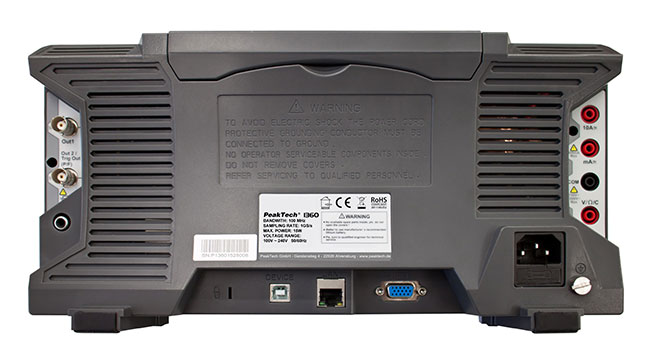

| Interfaces | WiFi, LAN, USB Device, USB Host |
| Dimensions (WxHxD) | 340 x 175 x 90 mm |
| Weight | ca. 2,6 kg |
| EAN-13 | 4250569403835 |
