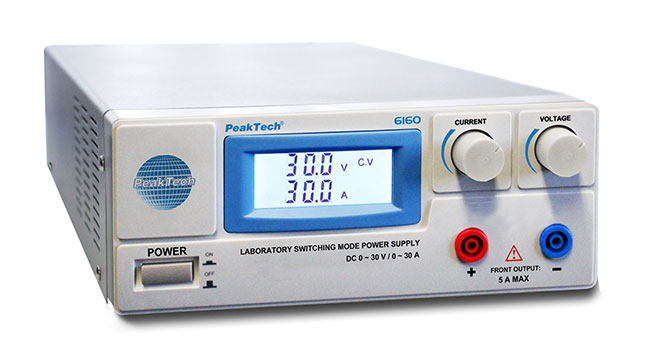

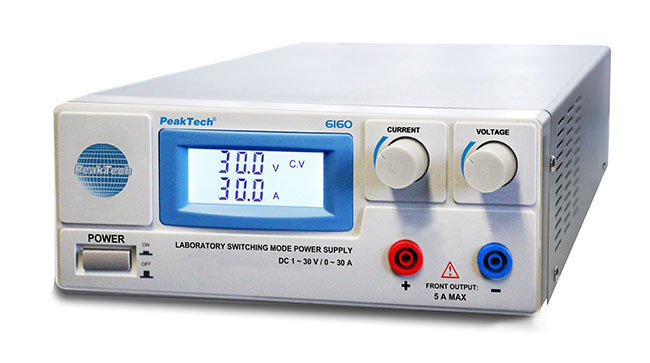

PeakTech® 6160
THB 12,000.00
SKU :
-
Laboratory Switching Mode Power Supply
DC 1 - 30 V/0 - 30 A
A newly developed switching mode power supply for a wide range of applications in the telecommunications, laboratory and industry.
This power supply has an extraordinary resistance to RF interference from close range.
The constant-current protection, over voltage protection and protection against over-temperature at constant current ensure high reliability and durability of this power supply.
- High efficiency
- Protection against short-circuit, overload and over-temperature
- Adjustable voltage range: 1 ~ 30 V
- DC output: binding posts at the back up to 30 A
- Safety: EN 61010-1
- Accessories: Power cable and manual
| Output power | 900 W |
| Output voltage | 1 ~30 V DC |
| Output current | Binding posts at the rear side 0 ~ 30 A Output sockets at the frontplate 4 mm safety-sockets up to 5 A |
| Ripple & noise | 50 mV pp, 5 mV rms |
| Load regulation | 50 mV (10 - 100% load) |
| Line regulation | 50 mV (+/- 10% variation) |
| Display | Voltage display: 3-digit: +/-0,2% + 3 dgt. Current display: 3-digit: +/-0,2% + 3 dgt. |
| Protection | Overload, overtemperature, short circuit protections by constant current circuitry and output overvoltage |
| Operating voltage | 200 ~ 240 V AC; 50/60 Hz |
| Dimensions (WxHxD) | 214 x 87 x 336 mm |
| Weight | 2,9 kg |
| EAN-13 | 4250569403040 |
