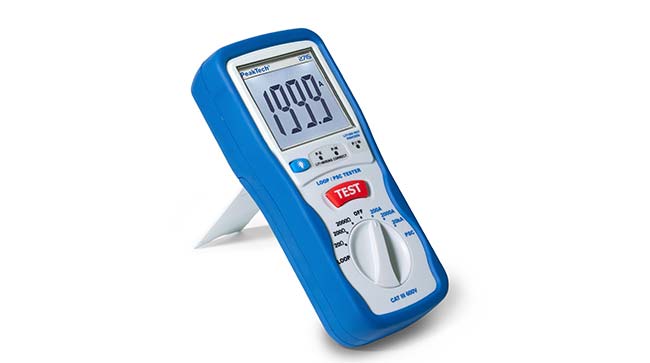

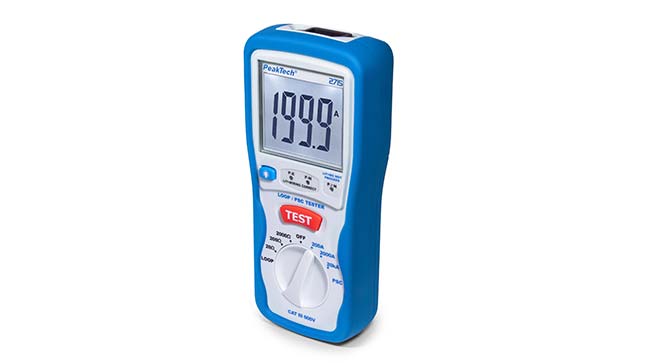

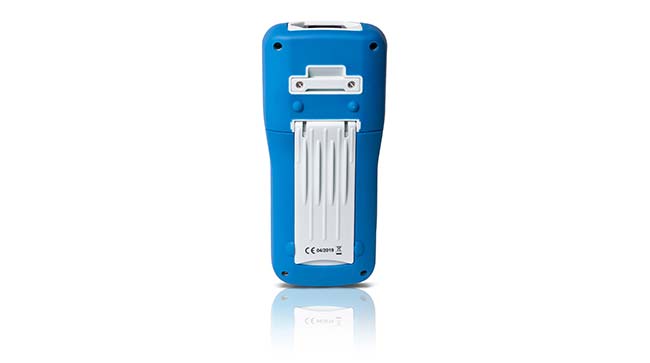

PeakTech® 2715
THB 6,500.00
Digital Loop / PSC Tester
Loop testers or loop testers are used to test the safety of electrical systems. These devices measure the impedance of the short-circuit loop between the outer conductors of a circuit, calculating the Prospective Short-circuit Current (PSC). The protection of the circuit (circuit breaker) must therefore trigger at a lower current than the prospective short-circuit current to avoid excessive heating of the lines and thus a fire hazard.
- 3-digit LCD display with backlight
- Normal (N) or Selective (S) -type RCD test
- Applicable measurement standards: IEC 61557-6, NF EN 61557-6, VDE 0413-6
- Safety: EN-61010-1; CAT III 600 V, IP40, double insulated housing
- Accessories: Carrying case, Test leads, Batteries and User manual
| Loop Impedance | 20Ω/200Ω/2000Ω |
| Resolution (Loop) | 200A/2kA/20kA |
| Resolution (PSC) | 0,1A/1A/10A |
| AC Voltage | 50~250V |
| Accuracy (ACV) | +/-2% +/- 5 dgt. |
| Operation voltage | 6 x 1,5 V AA (UM-3) batteries |
| Dimensions (WxHxD) | 92 x 200 x 50 mm |
| Weight | 700 g |
| EAN-13 | 4250569404702 |
