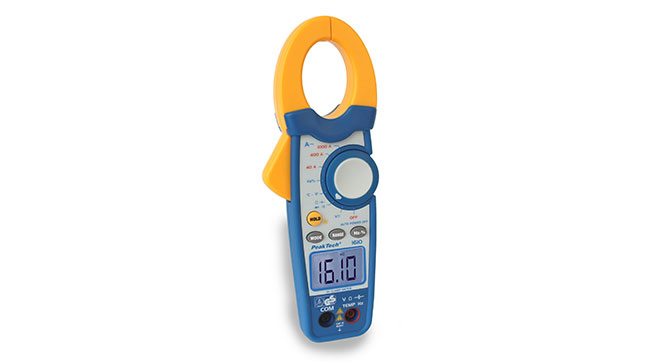

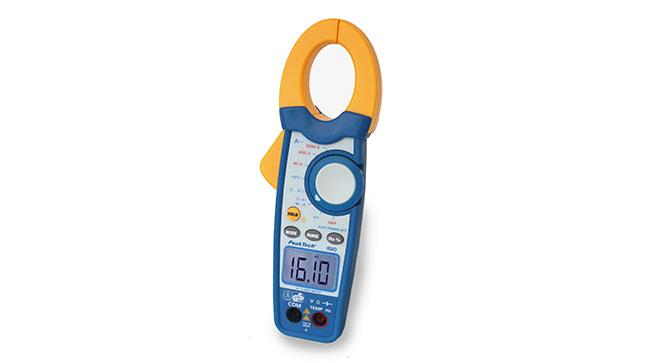

PeakTech® 1610

Digital Clamp Meter, 3 3/4-digit, 1000 A AC

This professional clamp provided you with a full range of features including current AC/DC up to 1000A, voltage, resistance, frequency and more for basic electric troubleshooting. The P1610 built-in a 3 ¾ digits display (17mm) LCD with backlight up to 3.999 Counts. An excellent choice for maintenance field. Rated at CAT III 600V the P1610 offers a diameter of 35mm for cables, Peak-hold function, capacitance, frequency, voltage, resistance, temperature, diode and continuity measurement with a fast response processor to enhance efficiency and safety in today´s complex electrical environments.

The perfect choice for electricians, maintenance technicians and education sector. Easy to use, resistant, safe and reliable.

It comes with a case for safe transportation, test probes, temperature probe Type-K, battery and operation manual

3 ¾ digit, 17 mm LCD; max. indication: 3999
Data hold
Backlight
AC current: 1000 A
AC/DC voltage: 600 V
Resistance-, frequency-, capacitance-, duty cycle- and temperature measurement
Diode test and continuity test
Auto/manual range selection
Auto power off
Max. conductor size: 35 mm
Safety: TÜV/GS, EN 61010-1; CAT III 600 V

Download Manual

PeakTech_1610_1615_1625_5s

DCV	400 mV/4/40/400/600 V; ± 0,8 % + 3 dgt. – 100 µV
ACV	400 mV/4/40/400/600 V; ± 1,8 % + 5 dgt. – 100 µV
ACA	40/400/1000 A; ± 2,5 % + 5 dgt. – 10 mA
Ohm	400 Ω/4/40/400 kΩ/4/40 MΩ; ± 1,0 % + 4 dgt. – 100 mΩ
Kap.	40/400 nF/4/40/100 µF; ± 3 % + 5 dgt. – 10 pF
Freq.	5/50/500 Hz/5/50/500 kHz/5/10 MHz; ± 1,2 % + 2 dgt. – 1 mHz
Temp.	-50 ... +1000°C; ± 3 % + 5°C – 0,1°C
Dimensions	(WxHxD) 80 x 230 x 50 mm
Weight	300 g
EAN-13	4250569400308
