PeakTech® 5145
THB 9,000.00
SKU :
-

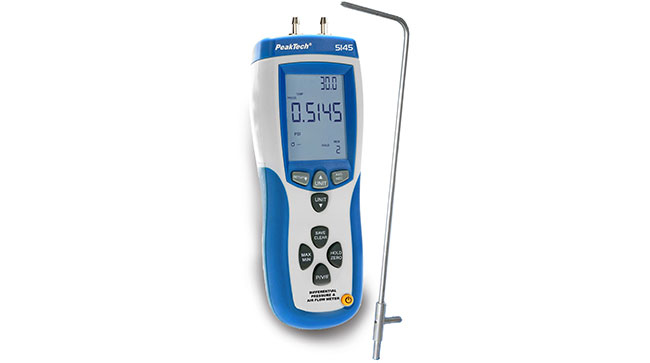

"2 in 1" Professional Pressure-Difference & Air Flow Meter with USB
Microprocessor controlled 2 in 1 meter for determining pressure, pressure difference, Air Velocity and Air Flow, with a digital multi-function display and backlighting. The ambient and air temperature can be additionally detected.
This combination device enables the use in installation, diagnostics, repair, maintenance and optimization of air conditioning, heating and ventilation systems and uses a pitot tube to capture the different readings.
The USB interface and the software are used for recording of measurement values over extended periods and read out the built-in memory of 99 measurement readings.
- Measurement of air velocity and air flow
- Measurement of air temperature, barometric pressure and differential pressure
- Average, minimum and maximum value recording
- Switchable auto power off function
- Data hold and zero function
- Internal memory for 99 measurement readings
- PC software and USB 2.0 interface
- Accessories: case, USB-interface cable, pitot-tube, connection hose, software for Windows 2000/XP/VISTA/7, battery and manual
| PSI | 0.0001 - 0.7252 PSI; 0.0001 PSI |
| mBar | 0.00 - 50 mBar; 0.01 mBar |
| inH2O | 0.00 - 20.07 inH2O; 0.01 inH2O |
| mmH2O | 0.0 - 509.8 mmH2O; 0.01 mmH2O |
| PA | 0 - 5000 PA; 1 PA |
| CFM | 0 - 99.999 ft3/min; 0.0001 to 100 |
| CMM | 0 - 99.999 m3/min: 0.001 to 100 |
| m/s | 1.00 - 80.00 m/s; 0.01 m/s |
| ft/min | 200 - 15733 ft/min; 1 ft/min |
| km/h | 3,6 - 288.0 km/h; 0,1 km/h |
| MPH | 2,24 - 178.66 MPH; 0.01 MPH |
| Knots | 2.0 - 154.6 Knots; 0.1 Knots |
| °C | 0 - 50.0°C; 0.1°C; +/- 1°C |
| °F | 32.0 - 122.0°F; 0.1°F; +/- 2°F |
| Operation voltage | 9V-battery |
| Dimensions (WxHxD) | 203 x 75 x 50 mm |
| Weight | 340 g |
